The guide rail is a linear guide motion, and the screw rod is precisely positioned! Combined with the use of linear motion is the precise positioning of natural curves. Do you really understand what it means? The following small series from the following four points to explain the guide screw for you:

一:高負荷,高扭矩功能

1： High load, high torque function

MR微型導軌系列采二列式滾珠循環設計,滾珠軌道設計采用哥德式結構,其接觸角為45度,以達到四方扽負荷之效果;并在有限空間制下,使用較大尺寸鋼珠,以提高負荷能力,充分展現高負荷.高扭矩功能。

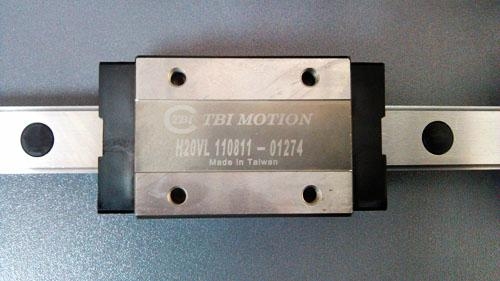

Mr micro guideway series adopts two row ball cycle design, ball track design adopts Goethe structure, its contact angle is 45 degrees, in order to achieve the effect of square load; and in the limited space system, use larger size steel ball to improve the load capacity and fully show the function of high load and high torque.

二:嵌入式設計

2： Embedded design

滑塊鋼體與框架，端蓋及密封片之結合方式才嵌入式設計，不須使用螺絲固定，既省結合設計之空間。

The combination of slide steel body and frame, end cover and sealing plate is embedded design, which does not need to be fixed with screws, which saves space for combination design.

三:回流孔特殊設計

3： Special design of return hole

鋼珠回流孔及回傳道由全密式塑膠框架及塑料端蓋構成，結構簡單，鋼珠循環更平穩，噪音底。

The steel ball return hole and return passage are composed of fully dense plastic frame and plastic end cover. The structure is simple, the ball circulation is more stable and the noise is low.

四:潤滑滑塊于兩端有密封式潤滑注油孔設計，可經由鋼珠循環將潤滑油帶到表明，達到潤滑的效果。

4： The two ends of the sliding block are provided with sealed lubricating oil injection holes, which can bring lubricating oil to the surface through steel ball circulation, so as to achieve the lubrication effect.
