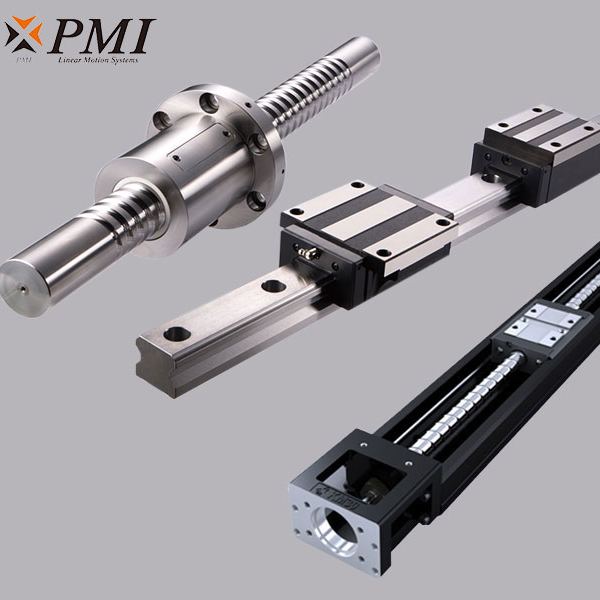

滾珠絲杠副及其支撐系統由于長時間運行產生的磨損間隙，將直接影響數控機床的傳動精度和剛性。一般故障現象有反向間隙大、定位精度不穩定等問題。根據磨損具體產生的位置，故障原因可分為以下幾類：

The wear clearance of the ball screw pair and its supporting system due to long-time operation will directly affect the transmission accuracy and rigidity of the CNC machine tool. The common fault phenomena are large reverse clearance and unstable positioning accuracy. According to the specific location of wear, the fault causes can be divided into the following categories:

①滾珠絲杠支撐軸承磨損或軸承預加負荷墊圈配的不合適。TBI滾珠絲桿將回轉運動轉化為直線運動,或?qū)⒅本€運動轉化為回轉運動的理想的產品。上海曼魯?shù)慕z桿很不錯

① The ball screw support bearing is worn or the bearing preload washer is not properly matched. TBI ball screw is an ideal product that converts rotary motion into linear motion or converts linear motion into rotary motion. Shanghai manlu's screw rod is very good

②滾珠絲杠雙螺母副產生間隙、滾珠磨損。滾珠絲桿將回轉運動轉化為直線運動，或?qū)⒅本€運動轉化為回轉運動的理想的產品。滾珠絲杠是工具機械和精密機械上A常使用的傳動元件，其主要功能是將旋轉運動轉換成線性運動，或?qū)⑴ぞ剞D(zhuǎn)換成軸向反復作用力，同時兼具高精度、可逆性和A率的特點。

② The double nut pair of ball screw produces clearance and ball wear. Ball screw is an ideal product that converts rotary motion into linear motion or converts linear motion into rotary motion. Ball screw is a transmission element commonly used in tool machinery and precision machinery. Its main function is to convert rotary motion into linear motion, or torque into axial repeated force. Meanwhile, it has the characteristics of high accuracy, reversibility and a rate.

③滾珠絲杠單螺母副由于磨損產生間隙。

③ The single nut pair of ball screw has clearance due to wear.

④螺母法蘭盤與工作臺之間沒有固定牢，產生間隙等。

④ The nut flange and the workbench are not fixed firmly, resulting in gaps.

2.滾珠絲杠副運動不平穩，噪音過大。

2. The motion of the ball screw pair is unstable and the noise is too large.

①伺服電機驅動參數未調整好。

① Servo motor driving parameters are not adjusted properly.

②絲杠絲母潤滑不良。

② Poor lubrication of lead screw nut.

③滾珠絲杠彎曲變形。TBI滾珠花鍵主要是由花鍵軸,循環套,花鍵套和滾珠這幾個部分組成,它與滾珠絲杠一樣是一種傳動效率很高的,傳動可逆的,同步性好,定期精度高。

③ The ball screw is bent and deformed. TBI ball spline is mainly composed of spline shaft, circulating sleeve, spline sleeve and ball. Like ball screw, TBI ball spline has high transmission efficiency, reversible transmission, good synchronization and high periodic accuracy.

④滾珠有破損。

④ The ball is damaged.

⑤絲杠與導軌不平行等！

⑤ The lead screw is not parallel to the guide rail!

通過檢測，如果確認故障不是由于絲杠竄動引起的。那就要考慮是否是絲杠螺母副之間產生了間隙，這種情況的檢測方法基本與檢測絲杠竄動相同。用百分表測量與螺母相連的工作臺上，正反向轉動絲杠，檢測出絲杠與螺母之間的A間隙，然后進行調整。

Through the test, if it is confirmed that the fault is not caused by the lead screw movement. It is necessary to consider whether there is a gap between the screw nut pairs. In this case, the detection method is basically the same as the detection of the screw movement. Use a dial gauge to measure the clearance a between the lead screw and the nut on the workbench connected to the nut, rotate the lead screw forward and backward, and then adjust it.
