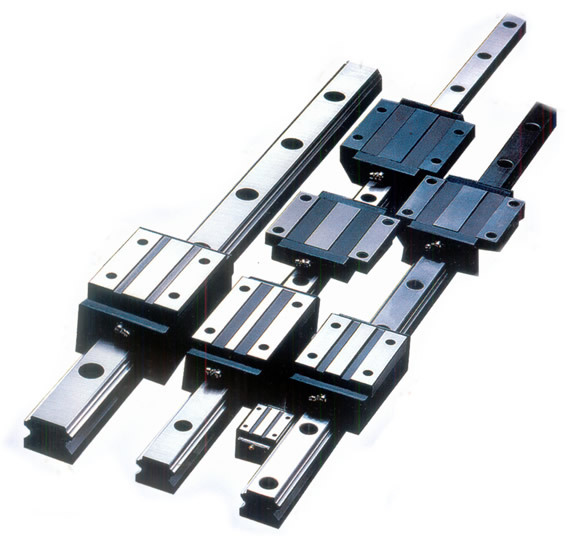

在自動化產線上，導軌是機械臂的“跑道”，精度差0.1毫米，產品良品率可能跌10%。但這條“跑道”的安裝，遠比鋪鐵軌復雜——從基座找平到潤滑保養，每個環節都是“細節魔鬼”。

　　On the automated production line, the guide rail is the "runway" of the robotic arm, with a precision difference of 0.1 millimeters, and the product yield may drop by 10%. But the installation of this "runway" is far more complex than laying railway tracks - from leveling the base to lubrication and maintenance, every step is a "devil of details".

　　一、安裝前：給基座做“全身體檢”

　　1、 Before installation: Conduct a "full body examination" on the base

　　地基強度測試：

　　Foundation strength test:

　　用回彈儀檢測混凝土基座硬度，C30以下強度會導致導軌沉降。

　　Use a rebound tester to test the hardness of the concrete base. A strength below C30 will cause the guide rail to settle.

　　預埋件位置偏差＞5mm？直接返工！否則導軌裝上后像“扭秧歌”。

　　Position deviation of embedded parts>5mm? Rework directly! Otherwise, after installing the guide rail, it will look like "twisting yangko".

　　環境“排雷”：

　　Environmental "mine clearance":

　　濕度＞85%？先上除濕機！否則導軌銹蝕速度加快3倍。

　　Humidity>85%? Get the dehumidifier on first! Otherwise, the corrosion rate of the guide rail will accelerate by three times.

　　粉塵濃度超標？封鎖現場！金屬碎屑進入滑塊，相當于給軸承“喂沙子”。

　　Excessive dust concentration? Block the scene! Metal debris entering the slider is equivalent to feeding sand to the bearing.

　　工具校準：

　　Tool calibration:

　　激光干涉儀、水平儀、大理石方箱……這些“精密武器”需提前24小時恒溫存放，否則測量誤差翻倍。

　　Laser interferometers, level gauges, marble boxes... These "precision weapons" need to be stored at a constant temperature for 24 hours in advance, otherwise the measurement error will double.

　　二、安裝中：讓導軌“站軍姿”

　　2、 During installation: Make the guide rail stand in a military posture

　　基座找平“三板斧”：

　　Base leveling "three board axe":

　　粗調：用水平儀+調整墊片，誤差控制在0.1mm/m以內。

　　Rough adjustment: Use a spirit level and adjust the gasket to control the error within 0.1mm/m.

　　精調：激光干涉儀登場，0.01mm級調整，堪比“外科手術”。

　　Fine tuning: Laser interferometer is introduced, with 0.01mm level adjustment, comparable to "surgical procedures".

　　終出彩校驗：電子水平儀掃描全段，確保導軌“躺”在同一個平面。

　　Ultimate verification: The electronic level scans the entire section to ensure that the guide rail "lies" on the same plane.

　　導軌對接“無縫術”：

　　Seamless rail docking technique:

　　拼接處用0.02mm塞尺檢測，能塞進？恭喜你獲得“漏財縫”！

　　Can a 0.02mm feeler gauge be used to check the joint and insert it? Congratulations on obtaining the 'wealth gap'!

　　出眾玩法：導軌端面預加工“定位銷孔”，對接精度直逼0.005mm。

　　High end gameplay: Pre machined "positioning pin holes" on the end face of the guide rail, with a docking accuracy of nearly 0.005mm.

　　螺栓緊固“黃金法則”：

　　The Golden Rule of Bolt Tightening:

　　交叉對稱緊固，分三次擰到額定扭矩，否則導軌會“擰麻花”。

　　Tighten crosswise and symmetrically to the rated torque in three times, otherwise the guide rail will "twist Fried Dough Twists".

　　鎖緊后涂防松膠，振動工況下需用液壓扳手二次校驗。

　　Apply anti loosening adhesive after locking, and use a hydraulic wrench for secondary verification under vibration conditions.

　　三、安裝后：給導軌做“全身體檢”

　　3、 After installation: Perform a "full body examination" on the guide rail

　　空載跑合“磨性子”：

　　Idle running in "grinding nature":

　　低速往復運行2小時，速度從10mm/s逐步提到額定速度，讓滑塊與導軌“磨合”。

　　Run back and forth at low speed for 2 hours, gradually increasing the speed from 10mm/s to the rated speed, allowing the slider to "break in" with the guide rail.

　　聽聲音！異常嘯叫？可能是潤滑不良或預緊力過大。

　　Listen to the sound! Abnormal whistling? It may be due to poor lubrication or excessive preload.

　　負載測試“驗真章”：

　　Load testing "verification seal":

　　加載至120%額定負載，運行24小時，檢測導軌變形量。

　　Load to 120% rated load, run for 24 hours, and detect the deformation of the guide rail.

　　出眾設備用應變片實時監測，變形超0.05mm？立即返修！

　　High end equipment with strain gauges for real-time monitoring, deformation exceeding 0.05mm? Repair immediately!

　　潤滑保養“持久戰”：

　　Lubrication and maintenance "long-lasting battle":

　　首次潤滑：導軌安裝后48小時內建議注油，否則金屬直接接觸會“咬死”。

　　First lubrication: Oil must be injected within 48 hours after the installation of the guide rail, otherwise direct contact with the metal will "bite".

　　定期維護：每500km運行距離或3個月換油，灰塵環境需縮短至1個月。

　　Regular maintenance: Change the oil every 500km or every 3 months, and reduce the dust environment to 1 month.

　　四、特殊場景“加餐”

　　4、 Special Scenario "Additional Meal"

　　潔凈室安裝：

　　Clean room installation:

　　穿防靜電服+手套操作，導軌表面用異丙醇擦拭，殘留顆粒＜0.5μm。

　　Wear anti-static clothing and gloves for operation, wipe the surface of the guide rail with isopropanol, and the residual particles should be less than 0.5 μ m.

　　滑塊密封圈升級為“雙唇形”，防塵性能提升5倍。

　　The slider sealing ring has been upgraded to a "double lip" design, which increases dust resistance by 5 times.

　　高溫環境：

　　High temperature environment:

　　導軌材料改用Invar合金，熱膨脹系數僅為普通鋼的1/10。

　　The guide rail material has been changed to Invar alloy, with a thermal expansion coefficient only 1/10 of that of ordinary steel.

　　潤滑脂選用“耐高溫型”，滴點＞260℃，否則會“流油”。

　　Lubricating grease should be selected as "high temperature resistant", with a drip point greater than 260 ℃, otherwise it will "flow oil".

　　戶外安裝：

　　Outdoor installation:

　　導軌加裝不銹鋼防護罩，防護等級≥IP67。

　　Install stainless steel protective cover on the guide rail, with a protection level of ≥ IP67.

　　定期檢查排水孔，積水會導致導軌“水膜潤滑”，摩擦力激增。

　　Regularly check the drainage holes, as water accumulation can cause the guide rail to become lubricated with a water film, leading to a significant increase in friction.

　　五、避坑實錄：這些錢別亂花

　　5、 Avoiding pitfalls: Don't spend this money recklessly

　　“免維護”陷阱：

　　The 'maintenance free' trap:

　　所謂“終身潤滑”滑塊，實則壽命縮短30%，后期維護成本更高。

　　The so-called 'lifetime lubrication' slider actually shortens its lifespan by 30% and incurs higher maintenance costs in the later stages.

　　“高精度”噱頭：

　　High precision gimmick:

　　精度等級不是越高越好！C級導軌（±0.01mm）已足夠應對90%場景，盲目追求B級（±0.005mm）成本翻倍。

　　The higher the accuracy level, the better! C-level guide rails (± 0.01mm) are sufficient to handle 90% of scenarios, blindly pursuing B-level (± 0.005mm) costs double.

　　“原裝”迷信：

　　Superstition of 'original':

　　滑塊、導軌可混搭！只要材質、精度匹配，組合成本可降40%。

　　Sliding blocks and guide rails can be mixed and matched! As long as the material and accuracy match, the combination cost can be reduced by 40%.

　　結語：導軌安裝是“技術活”，更是“良心活”

　　Conclusion: Rail installation is not only a "technical activity", but also a "conscientious activity"

　　在自動化江湖里，導軌安裝沒有“差不多先生”。記住：沒有絕對巧妙的安裝，只有不斷逼近出眾的追求。下次再面對導軌安裝時，不妨掏出這篇攻略，用匠人精神給機械臂鋪一條“絲滑跑道”。畢竟，讓設備多穩1毫米，就是給產品質量加了一道“保險栓”。

　　In the world of automation, there is no 'Mr. Almost' for rail installation. Remember: there is no absolute perfect installation, only the pursuit of constantly approaching the limit. Next time when facing the installation of guide rails, why not take out this guide and use the spirit of craftsmanship to pave a "silky smooth track" for the robotic arm. After all, making the device more stable by 1 millimeter adds a "safety bolt" to the product quality.
